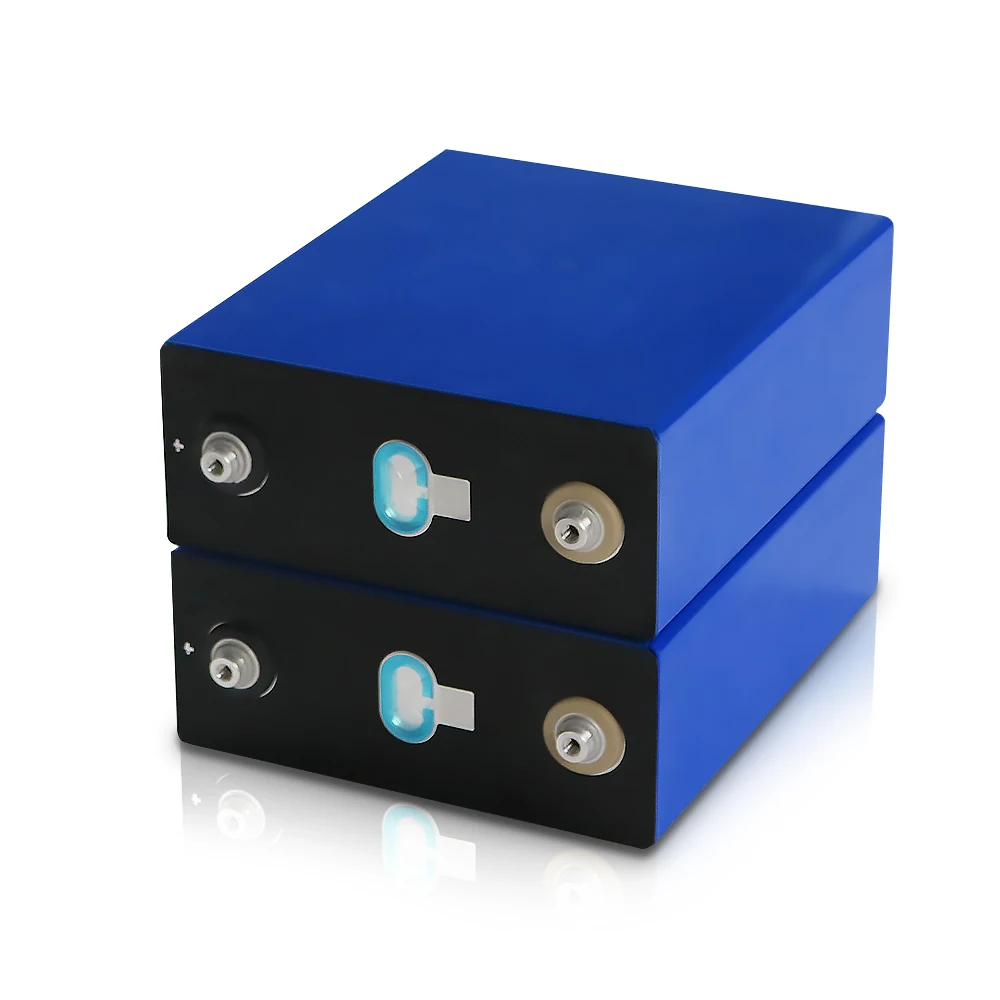

1.OUIO
Battery
type: lithium iron phosphate
Model: 3.2v 320Ah
Housing material: aluminum
Nominal voltage: 3.2V
Rated capacity: 320Ah
Minimum capacity: 310-320Ah
Internal resistance: less than 0.3mΩ
Suggested constant current: 155A (0.5C)
Discharge cut-off voltage: 2.5V
Recommended constant current: 310A (1C)
Maximum charging voltage: 3.65V
Maximum continuous discharge current: 310A (1C)
Constant current: 155A (0.5C)
Charging method: CC / CV
Charging voltage: 3.65V
Cycle life: 4000 times (80% DOD)
Battery weight: 5.3KG
Size: 174*71*207*227mm
Charging temperature: 0~60°C
Discharge temperature: -20~60°C
2. Tewaycell
Product name: lithium iron phosphate cell
（3.2V 280AH LIFEPO4)
Typical capacity: 280Ah（25±2℃,fresh cell, 0.5C discharge）
Minimum capacity: 280Ah（25±2℃,fresh cell, 0.5C discharge）
Internal impedance: 0.1 ~ 0.3mΩ
Nominal voltage: 3.2V
Dimensions(L*W*H): 174*72*203mm
Shell Material: Aluminum
Weight: 5.3 ± 0.1 kg
Recommend constant current: 280A (1c)
Discharge end voltage: 2.5 v
Recommend constant current: 140a (0.5c)
Charging voltage: 3.65 v
Maximum continuous discharge current: 280A (1c)
Life cycle (80% dod): 25℃0.5C/0.5C 80%
≥3500Cycle &
25℃0.5C/0.5C 70%≥4000Cycle
Standard charge temperature: 25±2℃
Absolute charging temperature：0~55℃
Absolute discharge temperature: -20~55℃
Operating：-20~60℃
3.CERRNSS
Specification:
Model: 24v 200Ah Lifepo4 battery Rate capacity: 200Ah Nominal voltage: 24v Maximum Dicharge Current: 200A(1C) Max Charge Voltage: 29.2 v Lmpedance Resistance: ≤0.3mΩ Charging Temperature: -20~55 °C Discharging Temperature: -30~60 °C Weight: 38KG Volume：(L*W*H): 480*230*220mm
Life Cycles:
2000 with 100% DOD 4000 with 80% DOD 6500 with 50% DOD
The LCD screen displays the
remaining power and current voltage. Let you keep track of the status of the
battery.
Stainless steel wraps the battery. Let the battery get better protection and
safety.
Portable design. Adapt to any scene using battery.
Built-in BMS
The 24v lifepo4 battery adopt 8S 250A BMS to protect it from overcharge, deep discharge, overloading, overheating and short circuit, and excessive low self-discharge rate ensuring, even more, the lifepo4 battery will have excellent cycle stability and high discharge voltage in low temperature.
Suitable for any
scene. Outdoors,
home appliances, electric vehicle batteries, tool
vehicle batteries, Steamship battery,
solar street lights, and more scenes.
04.WULILLS
Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah 0.2C
Energy: 2560Wh
Cycle Life: ＞4000 cycles at
0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 40A
Max. Charge Current: 100A
Max. Continuous Current: 200A
Max. Pulse Current: 300A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative
humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25%
relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative
humidity
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 530*237*217mm /
Weight: Approx. 24kg
Terminal Type: M8
Superior quality
Maximum continuous discharge current
is about 200A
wide operation temperature range -20℃-60℃
Dimensions
With M8 Terminal
With LCD screen
20.6in*8.6in*9.5in(530mm*217mm*237mm)
Why Choose LiFePO4
More than 4000 cycle times
10 Years of use life
1/3 the weight of the Lead-acid batteries
Cost per cycle 1/3 of the lead-acid batteries
With Built-in BMS
Overcharge protection
Over discharge protection
overload protection
short-circuit protection
high temperature protection
battery cell balancing
05.VariCore
|
Product Name: |
Lithium iron phosphate cell |
|
Shell Material: |
Aluminum |
|
Rated capacity: |
280mah |
|
Minimum capacity: |
280Ah |
|
Internal impedance: |
0.1~0.3mΩ |
|
Nominal voltage: |
3.2V |
|
Dimensions(L*W*H): |
174*72*205mm |
|
Weight: |
5.25±0.2kg |
|
Recommend Constant Current: |
280A(1C) |
|
End-of-Discharge Voltage: |
2.5V |
|
Recommend Constant Current: |
140A(0.5C) |
|
Charge Voltage: |
3.65V |
|
Max Continuous Discharge Current: |
280A(1C) |
|
Cycle life (80%DOD): |
4000 cycles |
|
Charging Temperature: |
-5~60°C |
|
Discharging Temperature: |
-30~60°C |
06.NYDPP
Technical parameters
Rated voltage 12V
Rated capacity:60AH
1. Battery cell type: LiFePO4 battery
2. Weight: About 5.2 kg
3. Size:275*235*165 mm
4. Nominal voltage: 12.8V
5. Operating voltage range: 10V~ 14.6V
6. Maximum charging current: 20A
7. Charging voltage: 14.6V
8. Continuous discharge current: ≤ 80A
9 Instantaneous discharge current: ≤ 160A
10. Service life: more than 3000 cycles
11. Operating environment: 0 ~ 45℃ (charging), -20 ~ 60℃ (discharging)
12. Battery storage period: 90% power (6 months)
13. Battery warranty: 12 months (free warranty)
Interface introduction
Note: all interfaces can be charged
and discharged!
① Charging
socket (GX16,3-pin airhead)
This interface is used by the charger to charge the battery, Its overcurrent is
less than 12A.
② Waterproof
plug (20A)
This waterproof plug is generally used to connect low-power load equipment such
as fish detector. Its overcurrent is less than 20A.
③ Anderson
plug (50A)
Anderson plug (50a specification) is mainly used to connect low-power electric
motor( below 600W). Its overcurrent is less than 50A
④⑤ 8mm terminal
(Discharge/charge interface)
Its overcurrent is less than 100A, It is used for loads with power below 1400W.
Suitable for connection with 8 mm diameter copper nose.⑥ USB3.0/PD
It can charge electronic and digital products such as mobile phones and laptop.
⑦ Display
The voltage of the battery can be displayed.
Please note: The voltage display is not accurate when the battery is in
charging or discharging state. The LiFePO4 battery's voltage is unstable, so
the display's percentage of charge is not accurate.
Including 10A charger
10A charger with European standard or
American standard or the British standard or Australia standard plug (according
to buyer's national standards).
The red indicator light indicates that the charging is in progress, and the
green indicator light indicates that the charging is completed.
1. Charging voltage: 14.6V
2. Charging current: 10A
3. Input voltage: 100v-240v
4. Charging time: about 8 hours
Application:
Boat propeller battery,
Camper/scooter, golf trolley/carts, power tools...
Inverter, Solar and wind power system, RV, caravan...
Back-up system and UPS...
Torch LED light emergency light.
Lithium battery type（Cell Type）
Adopts large single high power
LiFePO4 lithium battery. The current output is more stable and stronger.
LiFePO4 lithium battery have higher safety, longer service life and a wider
operating temperature range.
Built-in BMS
Built-in BMS battery management
system, functions:
1. over charge protection. 2. over current protection. 3. over voltage
protection
4. discharge protection. 5. short circuit protection. 6. over power protection.
7. temperature protection.
Better service
Contact the seller, know more
products information.
Capacity and output interface can be customized.
07.SMALL DEN
Product specification
Product name: lithium iron phosphate battery
Battery Model: 3.2V 200Ah
Battery type: LiFePO4
Housing material: aluminum
Nominal capacity: 200Ah
Minimum capacity: 200Ah
Internal impedance: 0.1~0.3mΩ
Rated voltage: 3.2V
Recommended constant current: 200A (1C)
Discharge termination voltage: 2.5V
Recommended constant current: 200A (1C)
Charging voltage: 3.65v
Maximum continuous discharge current: 200A (1C)
Life cycle: 4000 times (80% DOD)
Charging temperature: 0--60°c
Discharge temperature: -30--60°c
Weight: About 3.8KG
Size : 205 * 55 * 175mm
Shipping list:
3.2 V 200Ah battery *4
Screw
Copper sheet
Application:
Electric cars, Engine starter battery, electric bicycle,
electric motorcycle, electric scooter, golf cart, trolley, power tools, etc.
Solar and wind energy systems, motor homes, touring cars,
caravans;
backup power supplies, Backup system and UPS.
Regardless of the charging mode, since the battery
temperature is higher than the absolute charging temperature, charging should
be stopped.
Customers must configure bms strictly for monitoring,
management and protection.
Correctly connect the positive and negative terminals of the
battery. Reverse loading is prohibited. If the polarity is reversed, the
battery will be damaged and safety issues may occur.
If the batteries are not used for a long time, they must be
charged and discharged in standard models every six months. Store the battery
at 30% SOC (voltage range: 3.275v~3.305v).
08.KEPWORTH
12V 240Ah Lithium Iron Phosphate Battery Deep Cycle LiFePO4 Batteries Built-in BMS Life More Than 6000 Cycles For RV Campers Golf Cart Off-Road Off-grid Solar Storage Wind energy
Used For：
Solar Panel Power Bank System, Solar VRLA 12V Off-grid Applications, Trolling Motor, Mobility Scooter Wheelchair, Electronics, Wheelchair, Scooter, Industrial and Medical Equipment, Golf Carts, Hunting, Lawn and Garden Tools, Portable Tools, Toys and Hobby, Emergency Lighting, Leisure, RV House, Security and more.
Capacity: 240Ah
Battery Material:Lithium Iron Phosphate(LiFePO4) Battery
Nominal voltage: 12.8V
Rated voltage: 12V
Max Protection Voltage: 14.6V
End Voltage: 10V
Instantaneous discharge current:≥480A
Continuous discharge current:≥240A
Size:525*230*220mm
Weight: 26KG
Certificate: CE ROHS MSDS UN38.3
Upgrade Parts/Accessories: Grade A
Voltage Protection Board(BMS): Yes
Cycles Life: 2000 Cycles-100% 6000 Cycles-70%
Max Charge Current: 50A
Workingtemperature : -20 ~ 60 ℃
Charge temperature: 0-45℃
Warranty: 5 years
Advantages:
It has excellent safety peformance and high efficiency and stability woking performance than traditional Lead acid battery.
Low self discharge rate: It can be stored for more than 1 years ( and normal lead acid can only be stored with less than 6 months ).
Built-in BMS: BMS stands for "Battery Management System" - the brain of our deep cycle lithium batteries. Our BMS protects your battery from most common causes of battery failure, such as temperature volatility or ground faults. The BMS regulates the amount of power taken out of the battery and acts as a shut-off system to protect the li-ion cells (and you) from unsafe operating conditions.
Lithium ion Technology: Unlike Lead Acid batteries, Battle Born's deep cycle lithium ion batteries have unlimited mounting capability, exceptional longevity, and are more cost effective. When factoring time and cost into your purchase, our lithium ion battery banks come out ahead every time. Plus, Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults.
Green Energy Battery: Made from 100% safe, nontoxic, renewable energy, Battle Born Batteries last for more cycles and can be charged and discharged repeatedly (and charge faster than any other battery). We make our renewable, sustainable green energy batteries because they’re simply better than anything else out there, including other green batteries.
Parcel includes：
1.One LiFePO4 Energy Storage Battery
2.One Specialized Charger
09.Liitokala
Product Details:
Brand: LiitoKala
Model: 12v 280Ah battery pack, 3.2V 280Ah prismatic LiFePO4 battery with 4S1P
Battery type: 3.2v 280ah LiFePO4
Nominal voltage: 12.8V
Nominal capacity: 280Ah
Maximum charging current: 140A
Instantaneous discharge current: 300A
Continuous discharge current: 150A
Life: 3000 cycles or more
Charging temperature: 0~45°C
Discharge temperature: -20~60°C
Storage temperature: -20~65 °C
Weight: about 25kg (LiFePO4 battery)
Size: 355*245*180mm / custom
Operating voltage range: 10.0 V-14.6 V
Overload protection voltage: 14.6 V 0.05 V
Protection voltage against overload: 10.0 V 0.05 V
Protect battery temperature: 60°C plusmn 5°C
Output and parameters: high current positive / negative connection column (red positive, black negative);
Storage time: at least 90% of the remaining power within 6 months (recommended to charge within 3 months)
Battery warranty: 12 months (parts and technical support are provided free of charge, customers should bear appropriate logistics costs)
product
Advantage:
Easy to transport, light weight, high capacity, high release platform, long working time, long life, safe and environmentally friendly, series (80V resistor), parallel (voltage must be consistent)
Application:
Electric power application
●Start the battery motor
● Commercial buses and buses:
Electric cars, electric buses, golf carts/electric bicycles, scooters, RVs, AGVs, Marines, coaches, caravans, wheelchairs,
Electronic trucks, electronic sweepers, floor cleaners, electronic walkers, etc.
● Intelligent robot
● Power tools: electric drills, toys
Energy storage
● Solar wind power system
● City grid (on/off)
Backup system and UPS
● Telecom base, cable TV system, computer server center, medical equipment, military equipment
other apps
● Safety and electronics, mobile point of sale, mining lighting / flashlight / LED lights / emergency lights
Product advantages:
Easy to carry, high capacity, high release platform, long working hours, long life, safety and environmental protection
Application:
electric machine, xenon lamp / searchlight, inverter, handheld devices, wireless communication equipment, monitoring equipment, power equipment, medical instruments, relief equipment, emergency lighting /LED lamps, traffic signs, portable small household appliances, electric tools, automotive and industrial equipment reserve power supply
Safety Precaution:
1.Do not throw battery into water or make it wet
2.Keep the battery away from heat source
3.Do not throw the battery into fire or heat the battery
4.Forbid to hammer to trample the battery
5.Forbid disassembling the battery in anyway
Package includes :
1pcs 12V/12.8V 280Ah High capacity lifepo4 Battery pack, with BMS build-in.
10.MOSEWORTH
Auto Car Automobile LiFePo4 Battery 12V 100AH 2300CCA Lithium Ion Polymer Battery
Model: 100-20
Voltage: 12V
Battery Type: LiFePO4 Battery
Capacity: 100AH
CCA: 1900A
Size: LxWxH(352*174*190mm)
Weight: 8.2kg
Battery Polarity: Left Negative & Right Positive
Charging Efficiency: 3C
Start Transient Voltage Fluctuation: 0.2~0.5V
Discharging Temperature: -25~80Centigrade
Extremely Low self-discharge: <3% for LIFEPO4 versus >20% for SLA Battery.
Long Service Life: Its cycle can reach as long as 2000 times which is 7-10
times of SLA (the SLA battery is 300-500 times only）.
Maintenance free: LifePo4 battery don't include any liquid then it is
maintenance free.
Good performance, Lightweight: Weighs about 1/3 of same capacity SLA Battery.
Low Attenuation Rate: The attenuation rate of LifePo4 Battery is 5% per year,
and SLA is 40% per year.
No Hazmat, Cleaner for the environment: Cleaner for the environment, No Hazmat,
while LiCoO2 and SLA cause serious pollution to the environment.
Everyone knows that lithium batteries can explode, but it's really difficult for you to explode lithium iron phosphate batteries. Here's some knowledge about lithium iron phosphate batteries.
What is LiFePO4 Battery?
The lithium iron phosphate (LiFePO4) battery, also called LFP battery (with "LFP" standing for "lithium ferrophosphate"), is a type of rechargeable battery, specifically a lithium-ion battery, which uses LiFePO4 as a cathode material. LiFePO4 batteries have somewhat lower energy density than the more common lithium cobalt oxide (LiCoO2) design found in consumer electronics, but offer longer lifetimes, better power density (the rate that energy can be drawn from them) and are inherently safer. LiFePO4 is finding a number of roles in vehicle use and backup power.
History Of LiFePO4
LiFePO4 is a natural mineral of the olivine family (triphylite). Its use as a battery electrode which was first described in published literature by John B. Goodenough's research group at the University of Texas in 1996, as a cathode material for rechargeable lithium batteries. Because of its low cost, non-toxicity, the natural abundance of iron, its excellent thermal stability, safety characteristics, electrochemical performance, and specific capacity (170 mA·h/g, or 610 C/g) it gained some market acceptance.The chief barrier to commercialization was its intrinsically low electrical conductivity. This problem was overcome by reducing the particle size, coating the LiFePO4 particles with conductive materials such as carbon, or both. This approach was developed by Michel Armand and his coworkers. Another approach by Yet Ming Chiang's group consisted of doping LFP with cations of materials such as aluminium, niobium, and zirconium. Products are now in mass production and are used in industrial products by major corporations including Black and Decker's DeWalt brand, the Fisker Karma, Daimler AG, Cessna and BAE Systems. MIT introduced a new coating that allows the ions to move more easily within the battery. The "Beltway Battery" utilizes a bypass system that allows the lithium ions to enter and leave the electrodes at a speed great enough to fully charge a battery in under a minute. The scientists discovered that by coating lithium iron phosphate particles in a glassy material called lithium pyrophosphate, ions bypass the channels and move faster than in other batteries. Rechargeable batteries store and discharge energy as charged atoms (ions) are moved between two electrodes, the anode and the cathode. Their charge and discharge rate are restricted by the speed with which these ions move. Such technology could reduce the weight and size of the batteries. A small prototype battery cell has been developed that can fully charge in 10 to 20 seconds, compared with six minutes for standard battery cells.
